YD-FG3640 EPGC Epoxy Tube
EPGC epoxy tube: Strong insulation performance, chemical corrosion resistance, high-temperature resistance, dimensional stability, suitable for the electronics and electrical fields.
* If you are well-informed about the EPGC epoxy tube and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
EPGC epoxy tube is an electrical insulation material, mainly made of electrical grade non-alkali glass fiber cloth impregnated with epoxy resin, then heated, rolled, and cured through baking. It features flame retardance, with an insulation class of F, temperature resistance up to 155°C, and high flexural strength. Moreover, EPGC epoxy tube also possesses excellent electrical properties, including stable electrical performance under high humidity and high dielectric properties.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG3640 EPGC epoxy glass cloth tube |
| Base Material | Epoxy resin+alkali free glass cloth |
| Color | Green or Aqua Green |
| Diameter | Ф10～Ф800mm |
| Length | 1000mm |
| Density | 1.8-2.1g/cm³ |
| Insulation level | B |
| Temperature | 130℃ |
Product Features
- High Compressive Strength (>= 300 MPa): Withstands heavy mechanical pressure and provides stable structural support for electrical components.
- High Flexural Strength (>= 280 MPa): Provides excellent rigidity and resistance to bending under demanding operating conditions.
- High Dielectric Strength (>= 15 kV/mm): Provides reliable electrical insulation for transformers, motors, switchgear and high-voltage equipment.
- Class B Heat Resistance (130°C): Suitable for continuous operation at temperatures up to 130°C under normal working conditions.
- Low Water Absorption (<= 0.15%): Maintains stable dimensions and dependable electrical performance in humid environments.
- High Insulation Resistance (>= 1 x 10^12 ohm): Helps minimize leakage current and ensures stable performance in electrical insulation systems.

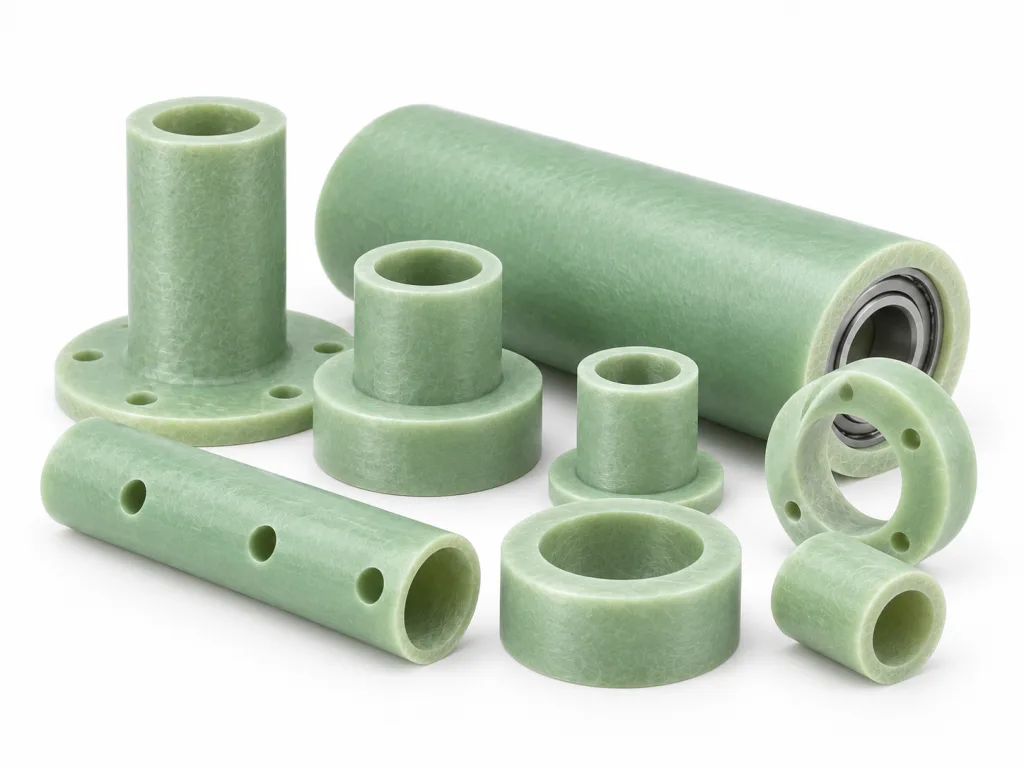

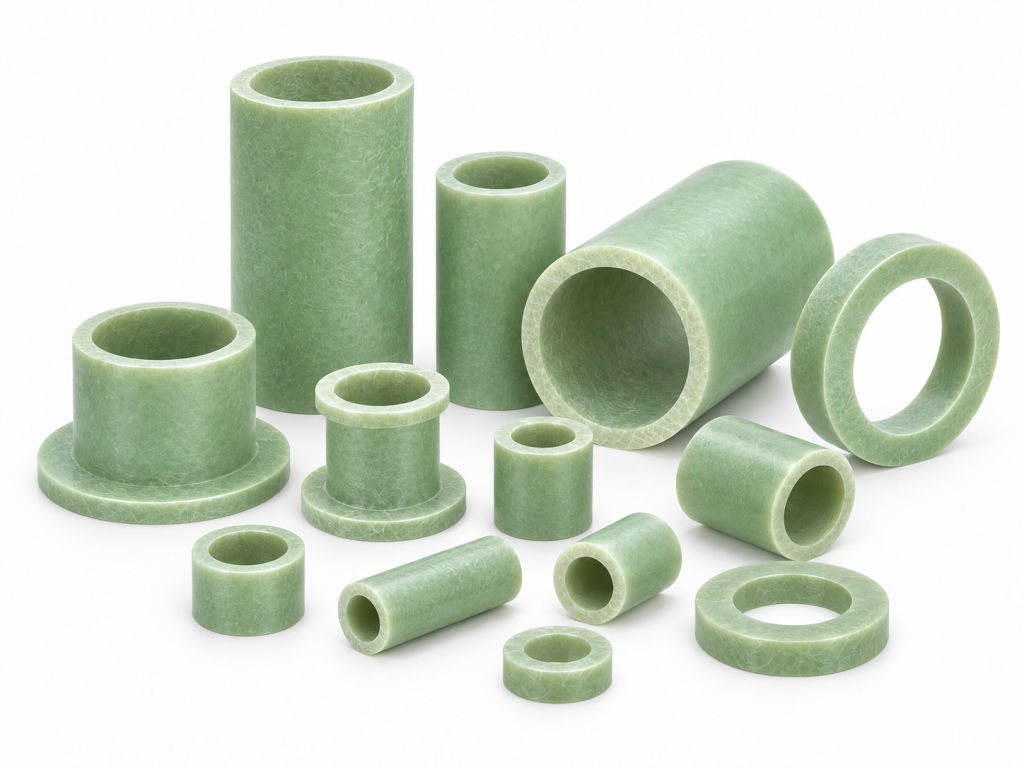

- Precision CNC Machining (Tolerance: Up to +/- 0.10 mm): Supports cutting, turning, drilling and milling into customized insulation components.

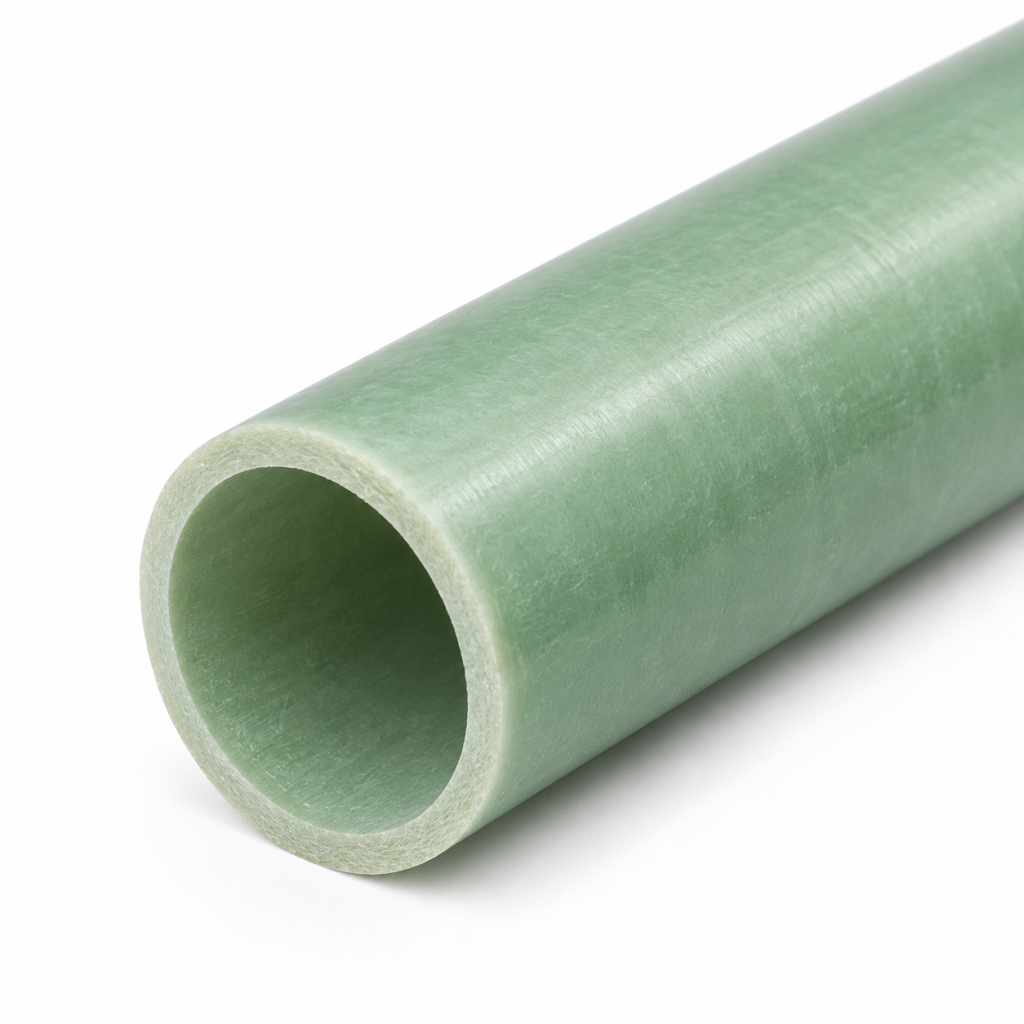

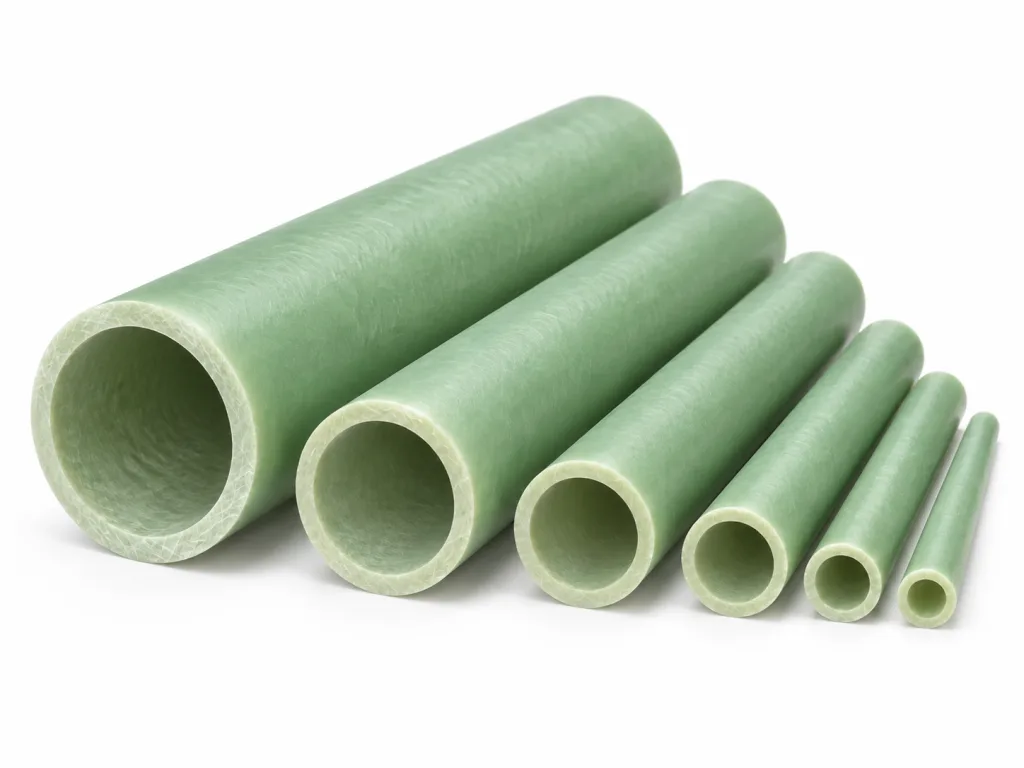

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
