YD-FG311 - GPO-3 Insulation Sheet
GPO-3 insulation sheet is a high-performance composite material made from fiberglass-reinforced unsaturated polyester resin. It offers excellent electrical insulation properties, good mechanical strength, and outstanding heat resistance and flame retardancy. This material is widely used in low-voltage electrical equipment for applications such as insulating supports, barriers, cable partitions, and motor end covers—especially in environments that require high arc resistance and tracking resistance. With stable dimensions and good machinability, it can be precisely processed by sawing, drilling, and other methods, making it an ideal insulation material for modern power systems and electrical equipment.
* If you are well-informed about the GPO-3 insulation sheet and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
GPO-3 insulation sheet is a glass fiber reinforced unsaturated polyester resin laminated sheet, designed for demanding electrical and mechanical applications. It combines excellent dielectric strength, arc resistance, flame retardancy, and mechanical durability, making it an ideal material for low and medium voltage switchgear, transformers, motor components, and busbar supports.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG311 - GPO-3 Insulation Sheet |
| Base Material | Glass fiber reinforced unsaturated polyester resin |

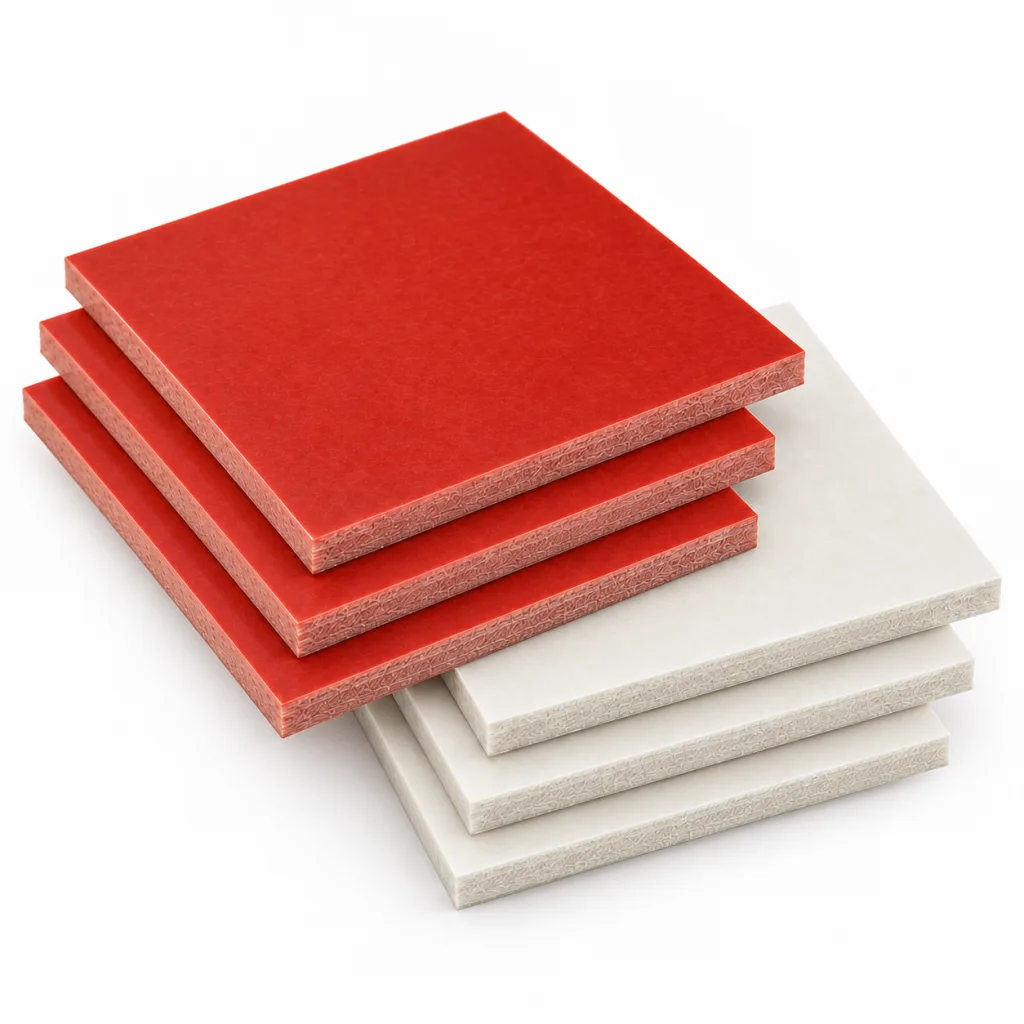

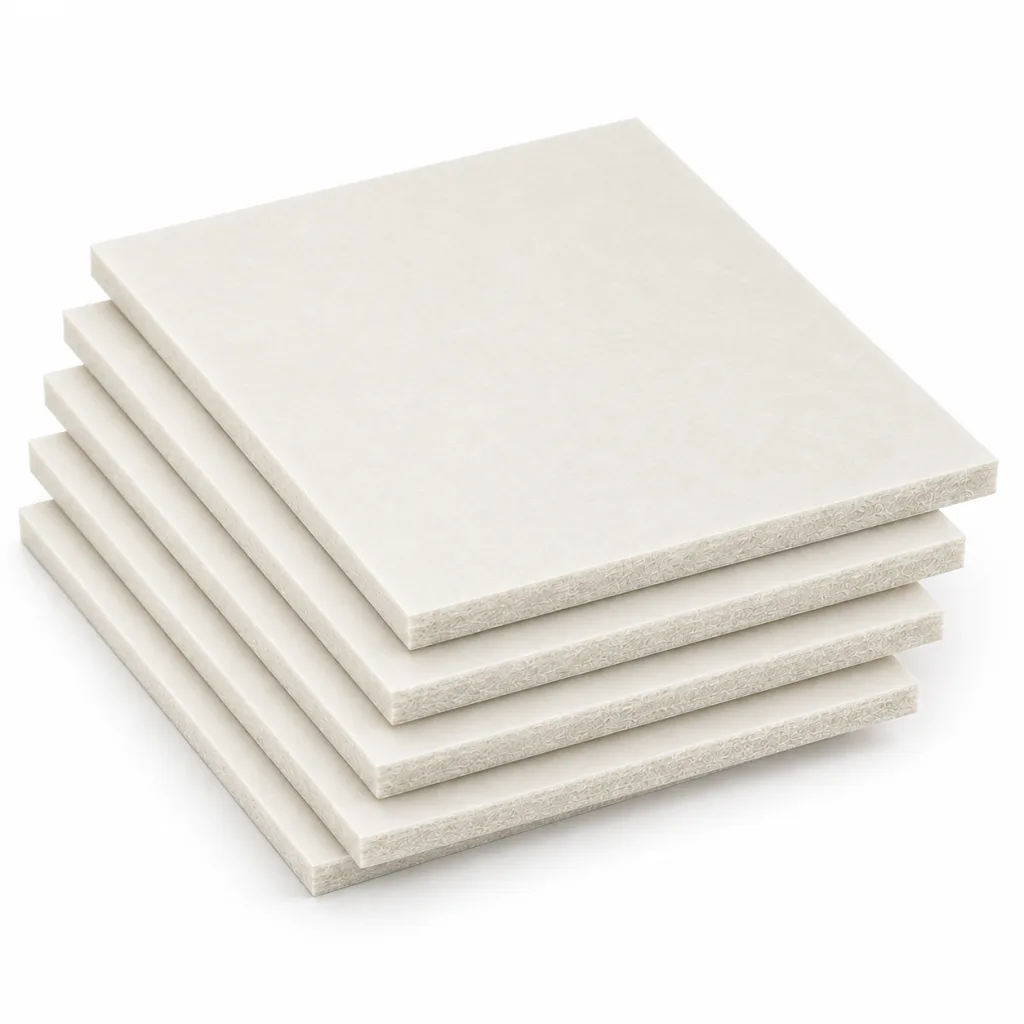

| Color | Red or white (customizable) |
| Thickness | 2.0mm – 100 mm |
| Size | 1020 mm × 2020 mm, 1250x2500 (custom sizes available) |
| Density | 1.8 – 1.95 g/cm³ |
| Flame Retardant Grade | UL 94 V-0 |
| Dielectric Strength | ≥10 kV/mm |
Product Features
- Flame-Retardant Performance (UL 94 V-0): Self-extinguishing material that helps reduce flame propagation in electrical equipment.
- High Arc Resistance (>= 180 s): Provides reliable resistance to electrical arcing in switchgear and high-voltage insulation components.
- High Tracking Resistance (CTI >= 600 V): Helps prevent surface tracking and electrical leakage under humid or contaminated conditions.
- High Flexural Strength (>= 130 MPa): Offers excellent rigidity and mechanical stability for structural insulation applications.
- Heat and Moisture Resistance: Maintains stable electrical and mechanical properties in warm and humid environments.
- Easy to Machine: Suitable for cutting, drilling, milling and CNC machining into precise insulation components.

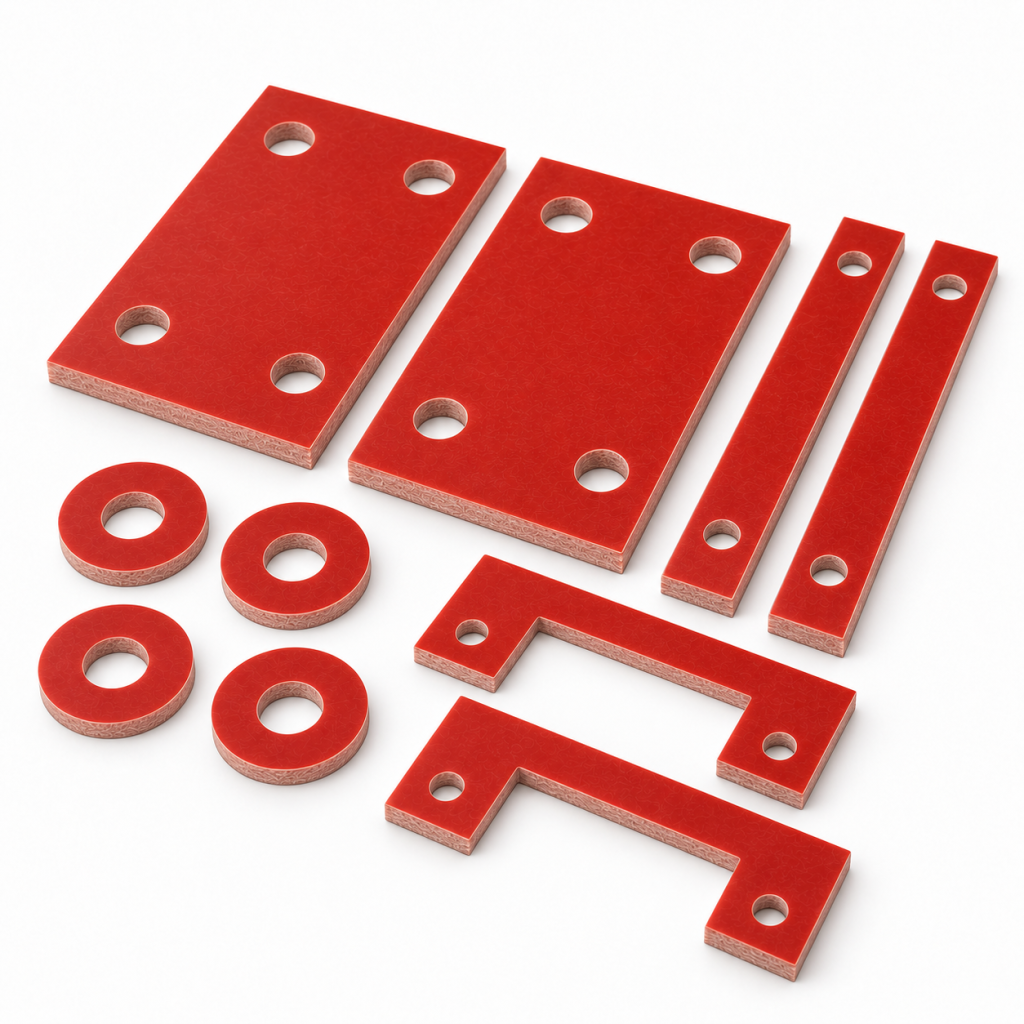

- Custom Processing Available: Different thicknesses, sheet sizes and machined parts can be supplied according to drawings or samples.

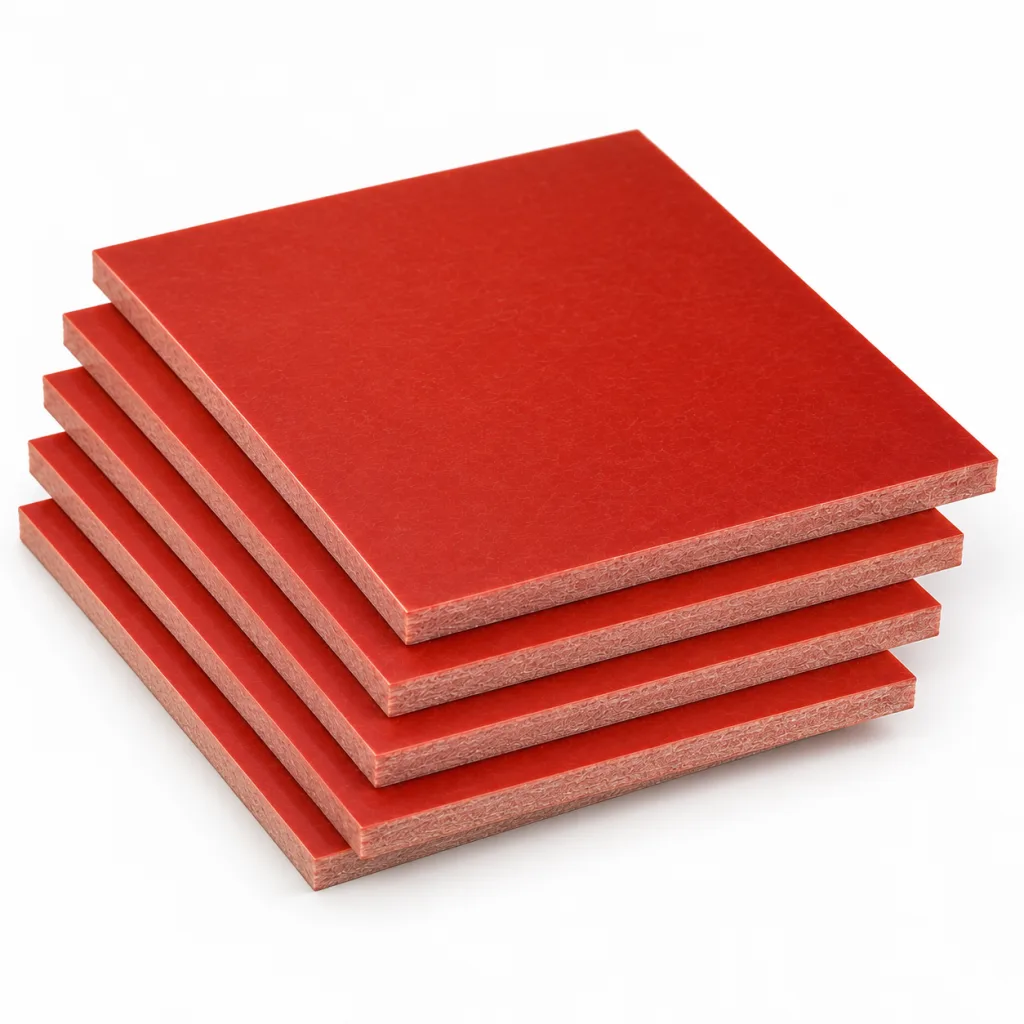

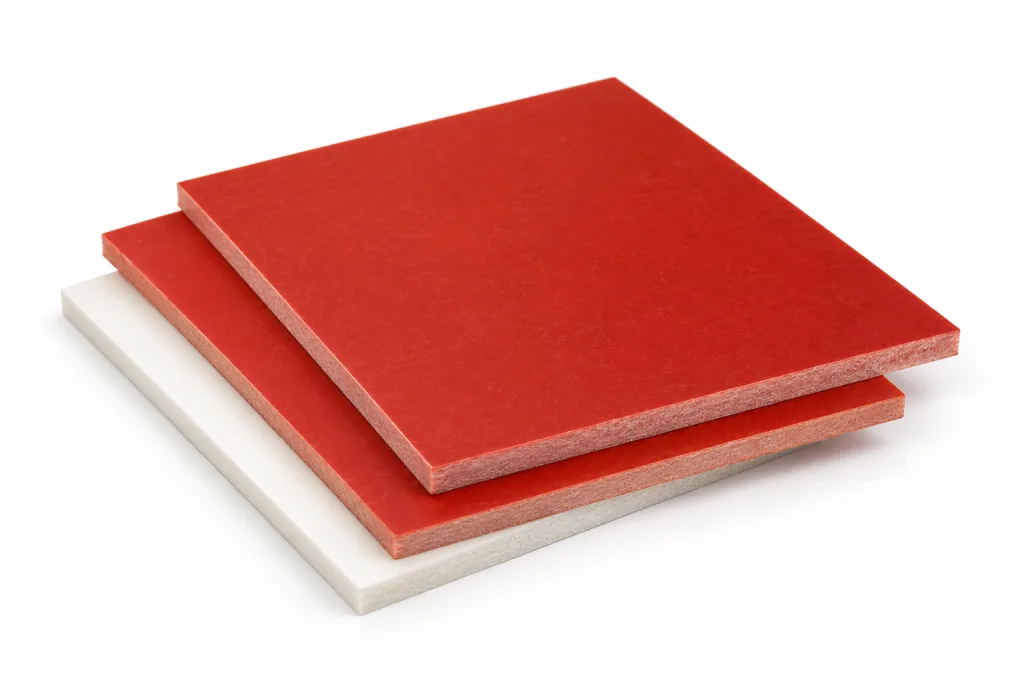

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
