YD-FG201-G10 epoxy glass fiber sheets
YD-FG201-G10 Epoxy Sheets: Wear-resistant, corrosion-resistant, easy to process, high strength, waterproof and moisture-proof, suitable for various industrial insulation occasions.
* If you are well-informed about the G10 epoxy sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
The G10 epoxy sheets
G10 epoxy glass fiber sheets, also known as epoxy fiberglass laminates, are composite materials made by impregnating woven glass fiber cloth with high-performance epoxy resin, then curing under controlled heat and pressure. This construction gives G10 an outstanding balance of mechanical strength, dimensional stability, electrical insulation, and environmental resistance.
The material exhibits high tensile strength, a high modulus of elasticity, excellent impact resistance, good chemical stability, and reliable fatigue resistance. It also offers low moisture absorption, making it suitable for humid or wet operating environments. These properties make G10 widely used in aviation, aerospace, marine equipment, chemical processing, agriculture machinery, electrical insulation components, mechanical structural parts, and premium knife handles.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG201- G10 Epoxy Fiberglass Laminate Sheet |
| Base Material | Epoxy Resin + Glass Fiber |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.3mm – 150mm ( More than 300mm can be produced according to product requirements) |
| Size | Standard sizes are 1020x1220mm, 1220x2020mm，1220x2440; for special sizes, we can produce and cut according to customer's requirements. |
| Density | 1.8–2.0 g/cm³ |
| Product Technical Specifications | ||||
|---|---|---|---|---|
| Specification Name | Unit | Specification Value | ||
| Density | g/cm³ | 1.8-2.0 | ||
| Water Absorption | % | ≤ 0.5 | ||
| Flexural Strength Perpendicular to Laminations | MPa | ≥ 340 | ||
| Compressive Strength Perpendicular to Laminations | MPa | ≥ 350 | ||
| Impact Strength Parallel to Laminations (Charpy method with notch) | KJ/m² | ≥ 37 | ||
| Shear Strength Parallel to Laminations | MPa | ≥ 34 | ||
| Tensile Strength | MPa | ≥ 300 | ||
| Dielectric Strength Perpendicular to Laminations at 90°C ± 2°C in oil | 1mm | KV/mm | ≥ 14 .2 | |
| 2mm | ≥ 11 .8 | |||
| 3mm | ≥ 10 .2 | |||
| Breakdown Voltage Parallel to Laminations at 90°C ± 2°C in oil | kV | ≥ 40 | ||
| Dielectric Dissipation Factor (at 50 Hz) | – | ≤ 0 .04 | ||
| Insulation Resistance Normal | Normality | Ω | ≥ 5 .0 × 1012 | |
| After 24 hours immersion in water | ≥ 5 .0 × 1010 | |||
| Flammability (UL-94) | Rating | V- 0 | ||
Product Features
- Excellent Electrical Insulation(Dielectric Strength: >= 15 kV/mm): Provides reliable dielectric performance for electrical and electronic insulation applications.
- High Mechanical Strength(345-450mpa): Reinforced with woven fiberglass cloth for excellent strength, rigidity and impact resistance.
- Multiple Material Grades(G10, FR4 and G11): Available in G10, FR4, G11 and other epoxy fiberglass laminate grades for different operating conditions.
- Reliable Heat Resistance (Class B/F): Maintains stable mechanical and electrical properties under elevated operating temperatures.
- Low Moisture Absorption(0.1%-0.3%): Offers dependable insulation performance in humid and moisture-prone environments.
- Flame-Retardant FR4 Available(UL94-V0): FR4 grade provides flame-retardant performance for applications requiring enhanced fire safety.
- Precision CNC Machining(Tolerance: Up to +/- 0.10 mm): Supports cutting, drilling, milling and customized fabrication according to drawings or samples.
- Custom Sizes and Thicknesses(0.2-100mm): Sheets, strips and finished components can be supplied in customized dimensions for different projects.

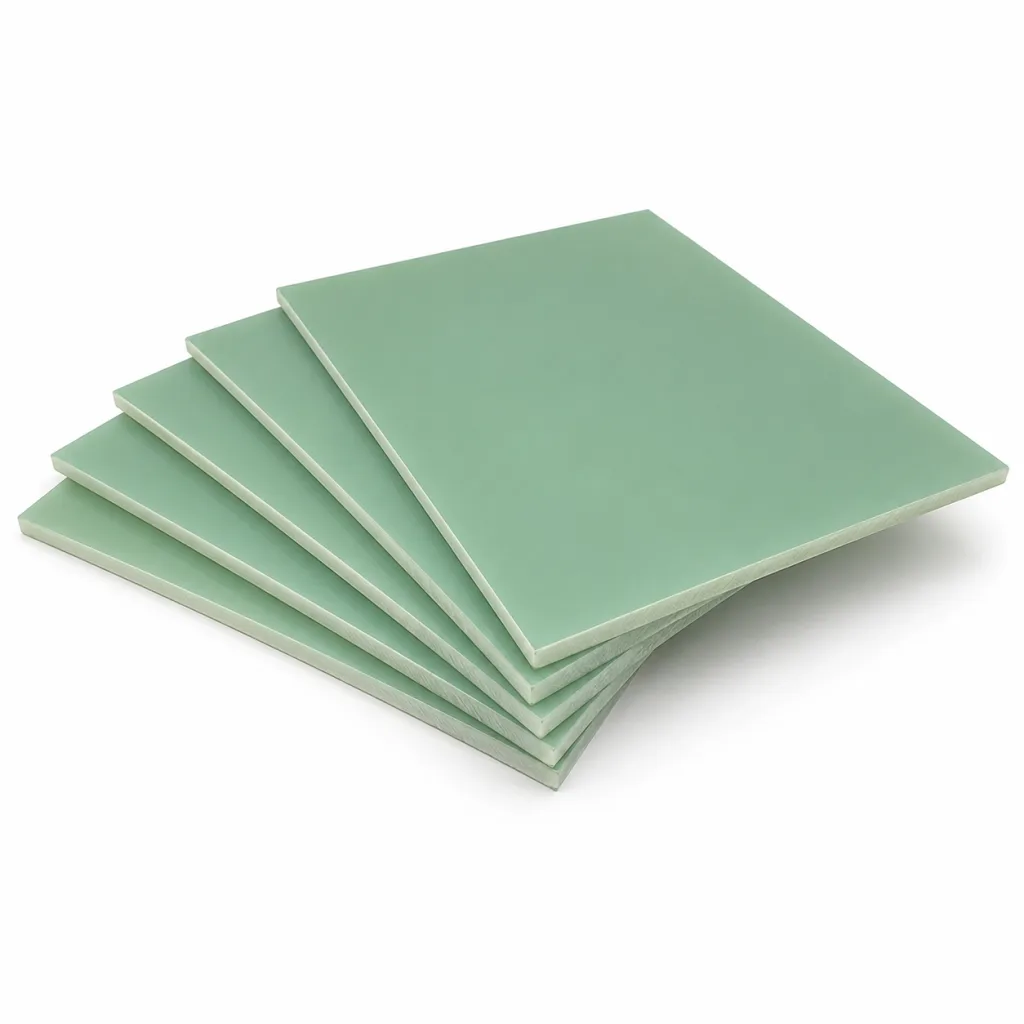

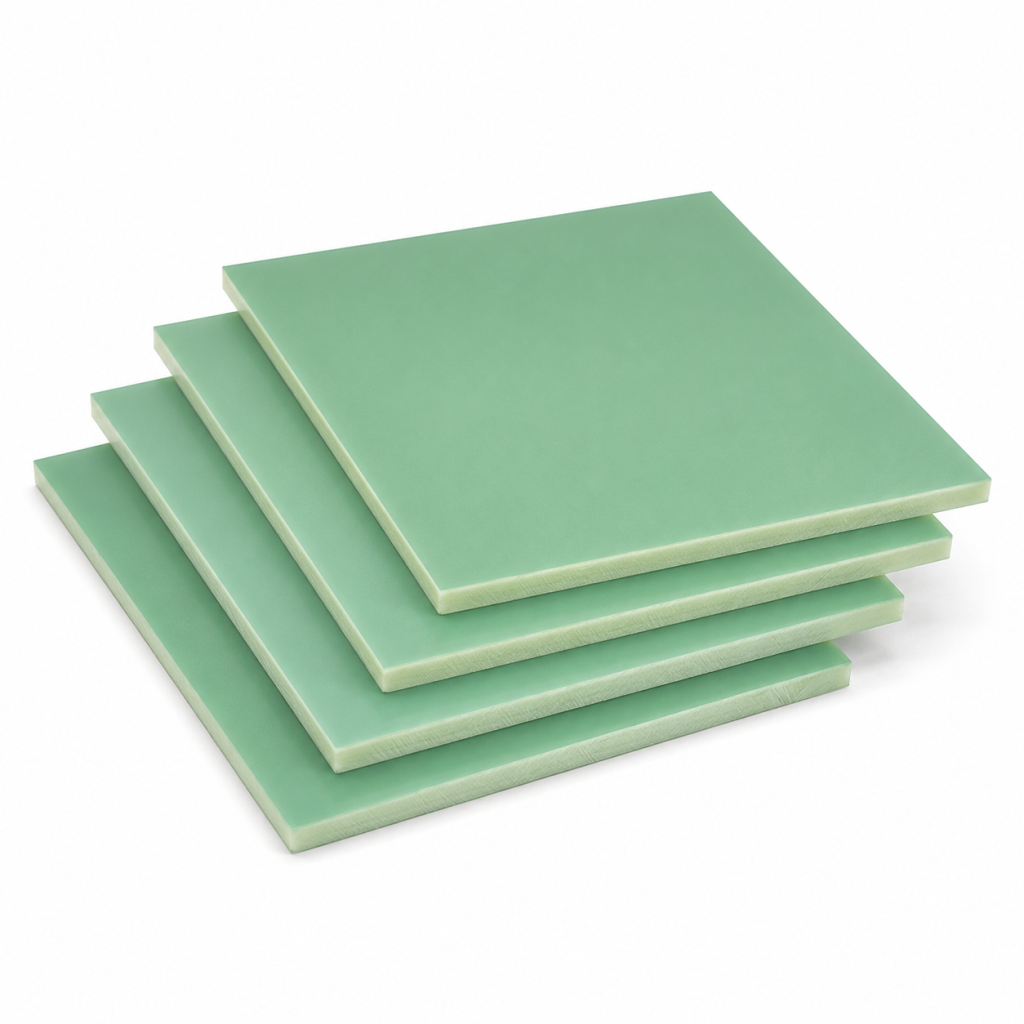

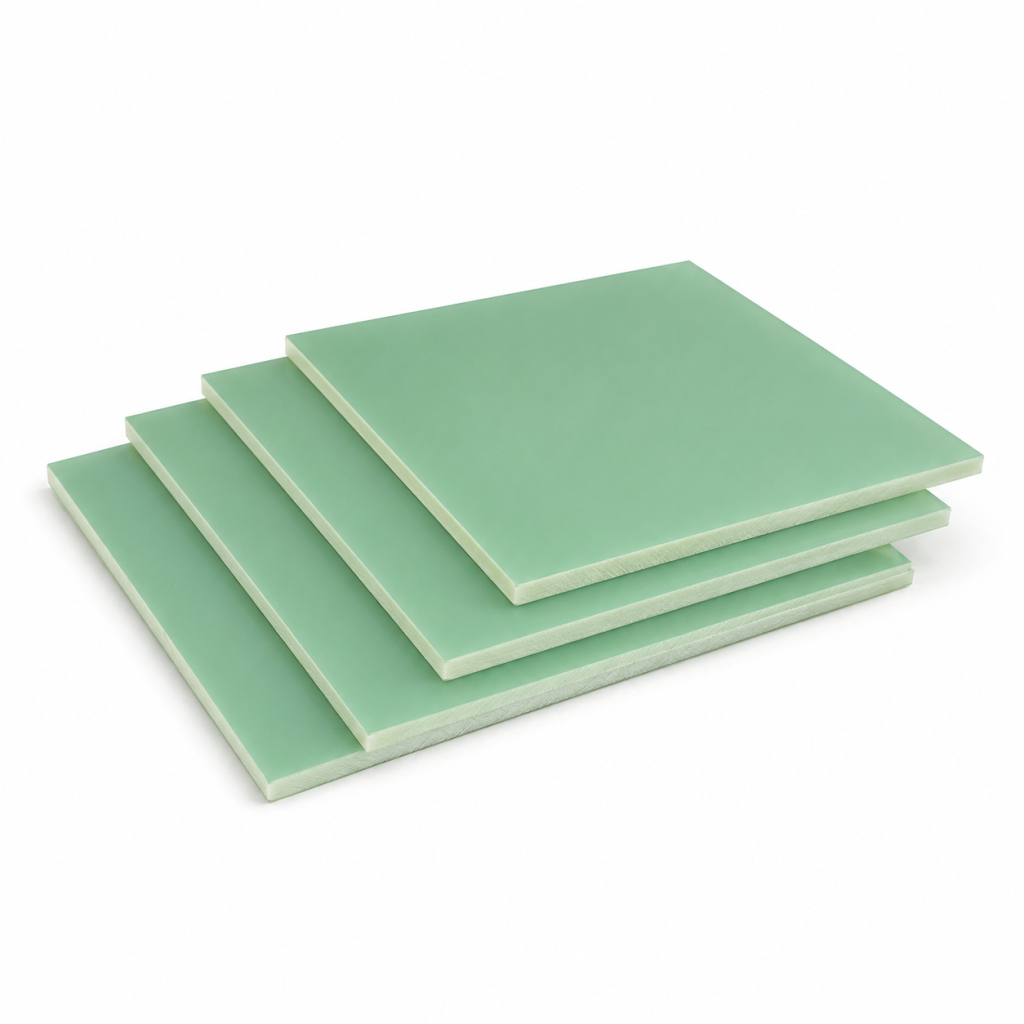

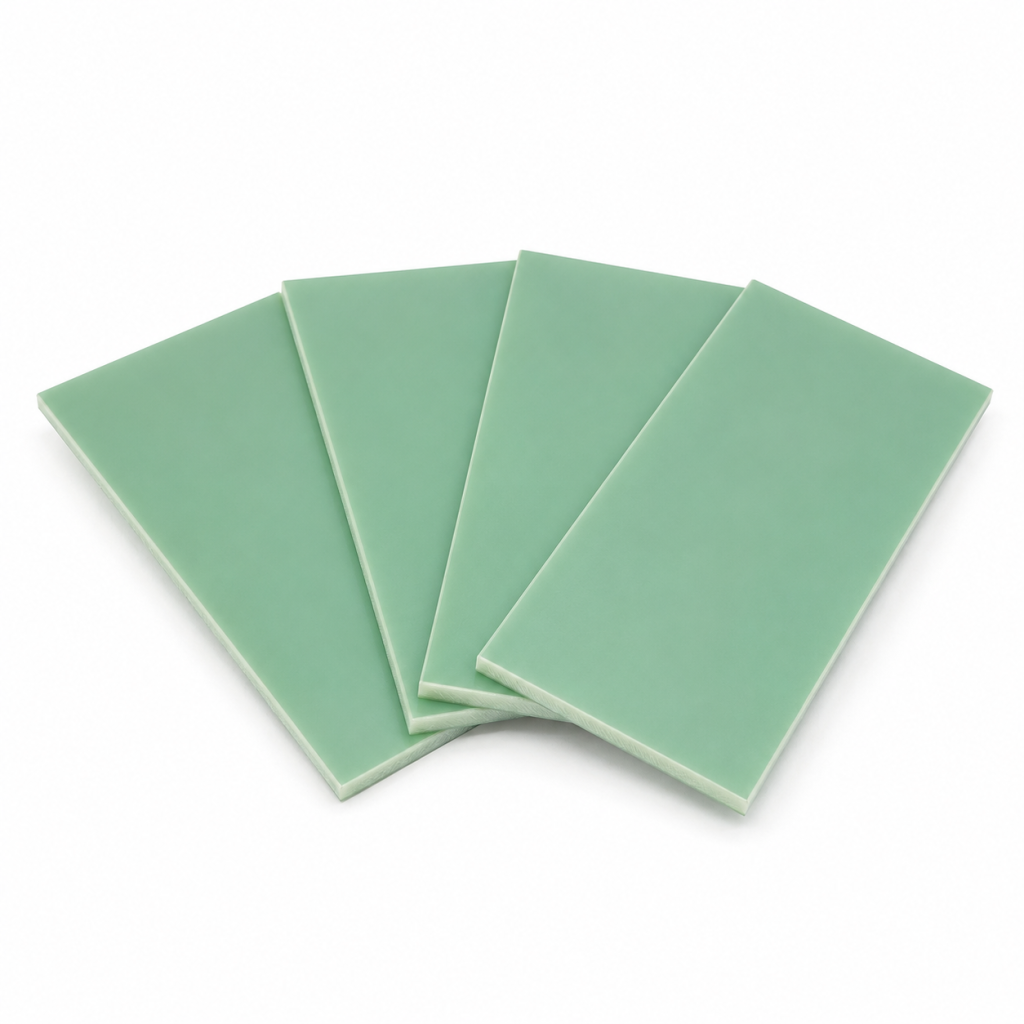

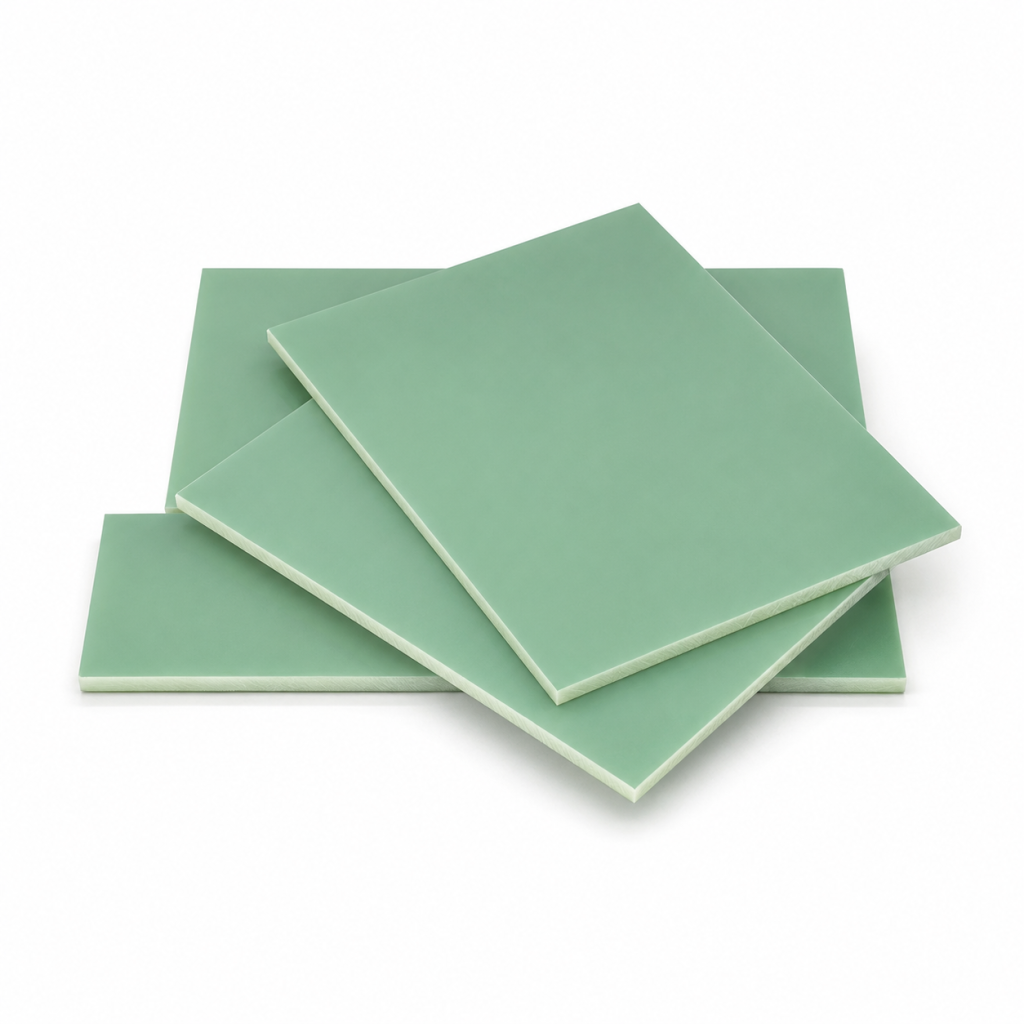

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
