YD-FG305 - SMC Sheets
SMC Sheets: High strength, corrosion-resistant, excellent electrical insulation performance, lightweight, easy to process, suitable for various industrial applications.
* If you are well-informed about the SMC Sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
SMC sheets are a high-performance composite material made from unsaturated polyester resin as the matrix resin, with the addition of fillers, reinforcing fibers (usually glass fibers), hardeners, release agents, and other auxiliary materials, formed under high temperature and pressure. SMC sheets are widely used across various fields due to their exceptional insulation performance, high strength, lightweight, corrosion resistance, fire retardancy, and long-lasting durability, especially in the power and electronics industries for manufacturing various insulation components and structural parts.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-FG305 - SMC Sheets |
| Base Material | Unsaturated Polyester Resin + Glass Fiber Reinforcement |
| Color | Black, Gray, Orange Red, Customized Colors Available |
| Thickness | Generally between 0.2-100mm |
| Size | The regular size are 1020x2020mm, 1250x2500mm; Special sizes, we can produce and cut according to customer requirements. |
| Density | 1.8–1.95g/cm³ |
| Product Technical Specifications | ||||
|---|---|---|---|---|
| Unsaturated polyester molding materials | model | SMC | ||
| performance | unit | Technical Requirements | ||
| density | g/cm3 | 1.8～1.95 | ||
| Water Absorption | % | ≤0.2 | ||
| Moulding shrinkage | ％ | ≤0.14 | ||
| Tensile Elastic Modulus | MPa | ≥9000 | ||
| tensile stress at fracture | MPa | ≥55 | ||
| bending elastic modulus | MPa | ≥9500 | ||
| flexural strength | MPa | ≥ 150 | ||
| Impact strength of simply supported beam (without notch) | KJ/m2 | ≥60 | ||
| Load deformation temperature (Tff1.8) | ℃ | ≥190 | ||
| Coefficient of linear thermal expansion （35℃～55℃） | 10-6/℃ | ≤18 | ||
| Electrical Strength (Φ20mm ball/Φ20mm ball electrode, normal oil, rapid voltage rise) | KV/mm | ≥21 | ||
| Dielectric Loss Factor （100HZ） | - | ≤0.02 | ||
| Relative Permittivity （100HZ） | - | ≤4.5 | ||
| Insulation Resistance | normalcy | Ω | ≥1.0*1013 | |
| After immersion in water for 24 hours | ≥1.0*1012 | |||
| Volume resistivity | Ω*m | ≥1.0*1012 | ||
| Surface Resistivity | Ω | ≥1.0*1012 | ||
| PTI | - | ≥600 | ||
| Arc Resistance | S | ≥180 | ||
| combustibility | level | Not inferior to V-1 | ||
| Loi | % | ≥22 | ||
Product Features
- Excellent Flame Retardancy (UL 94 V-0): Self-extinguishing performance helps reduce flame propagation in switchgear and electrical equipment.
- High Tracking Resistance (CTI >= 600 V): Helps prevent surface tracking and electrical leakage under humid or contaminated operating conditions.
- High Arc Resistance (>= 180 s): Provides reliable protection against electrical arcing in switchgear, circuit breakers and high-voltage components.
- High Dielectric Strength (>= 12 kV/mm): Provides dependable electrical insulation for transformers, switchgear and industrial electrical equipment.
- High Flexural Strength (>= 150 MPa): Offers excellent rigidity and resistance to bending for structural insulation and mechanical support applications.
- High Compressive Strength (>= 180 MPa): Withstands heavy mechanical loads and provides stable support for electrical components.

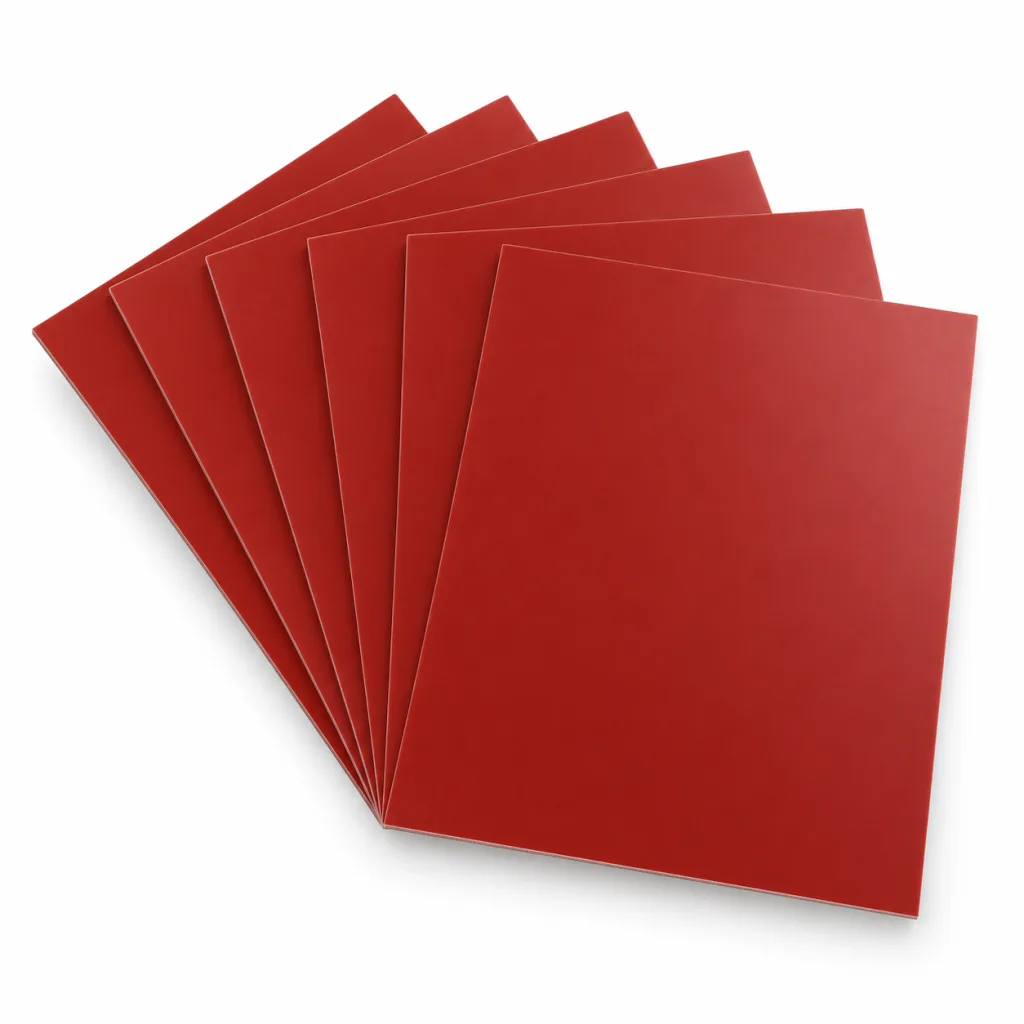

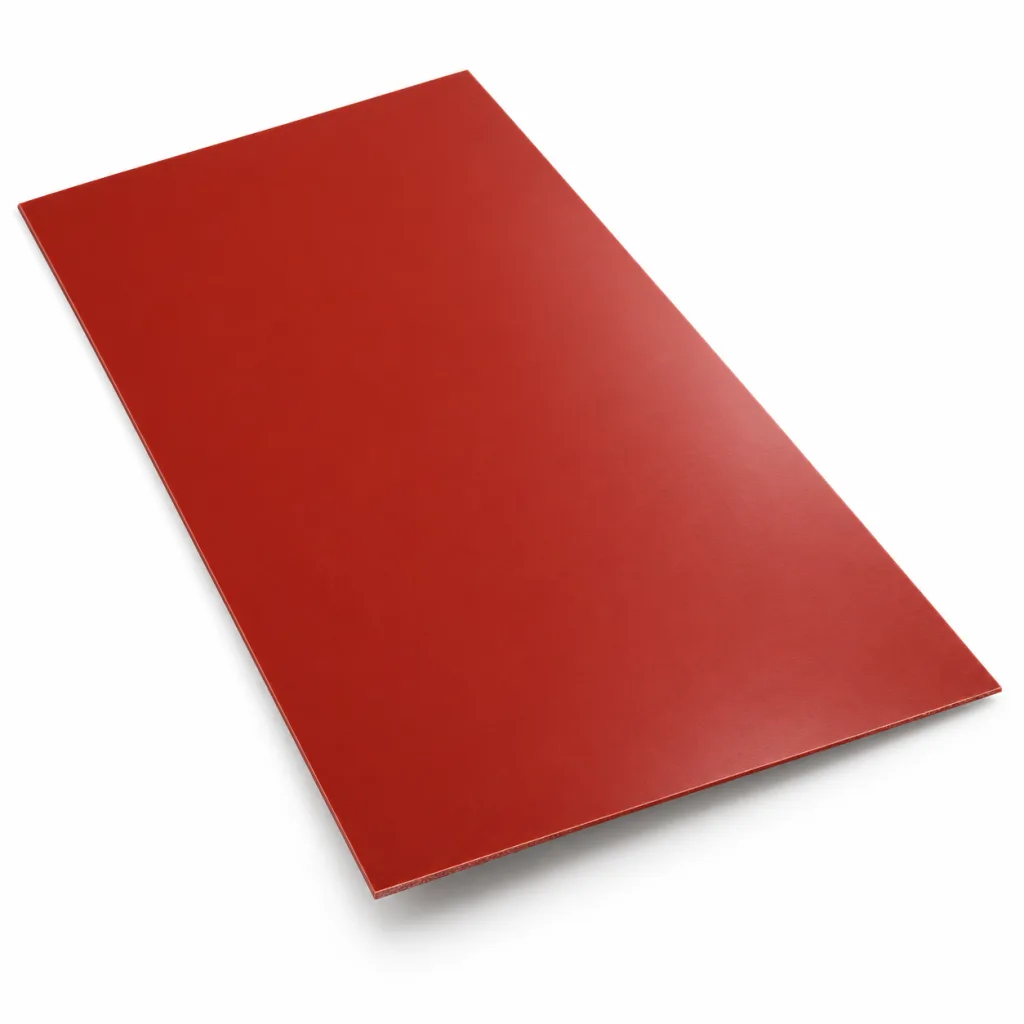

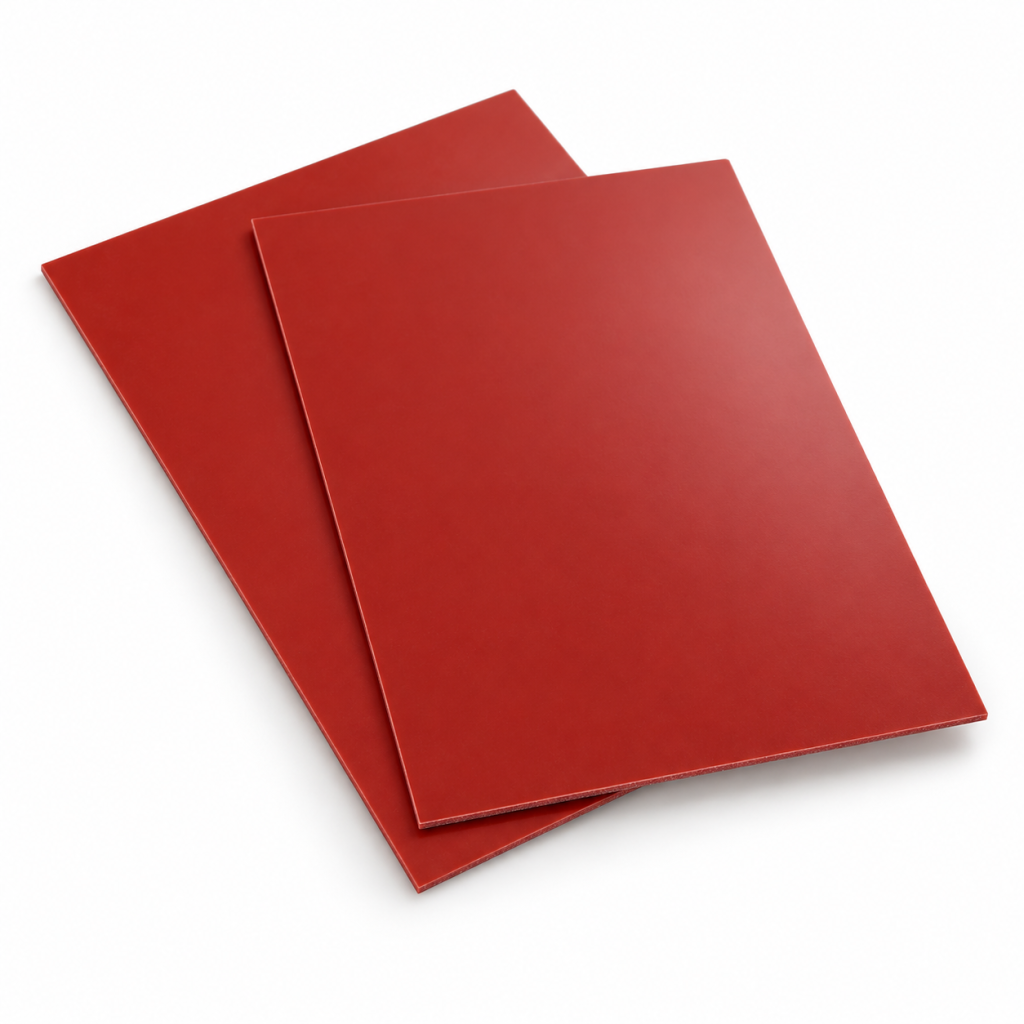

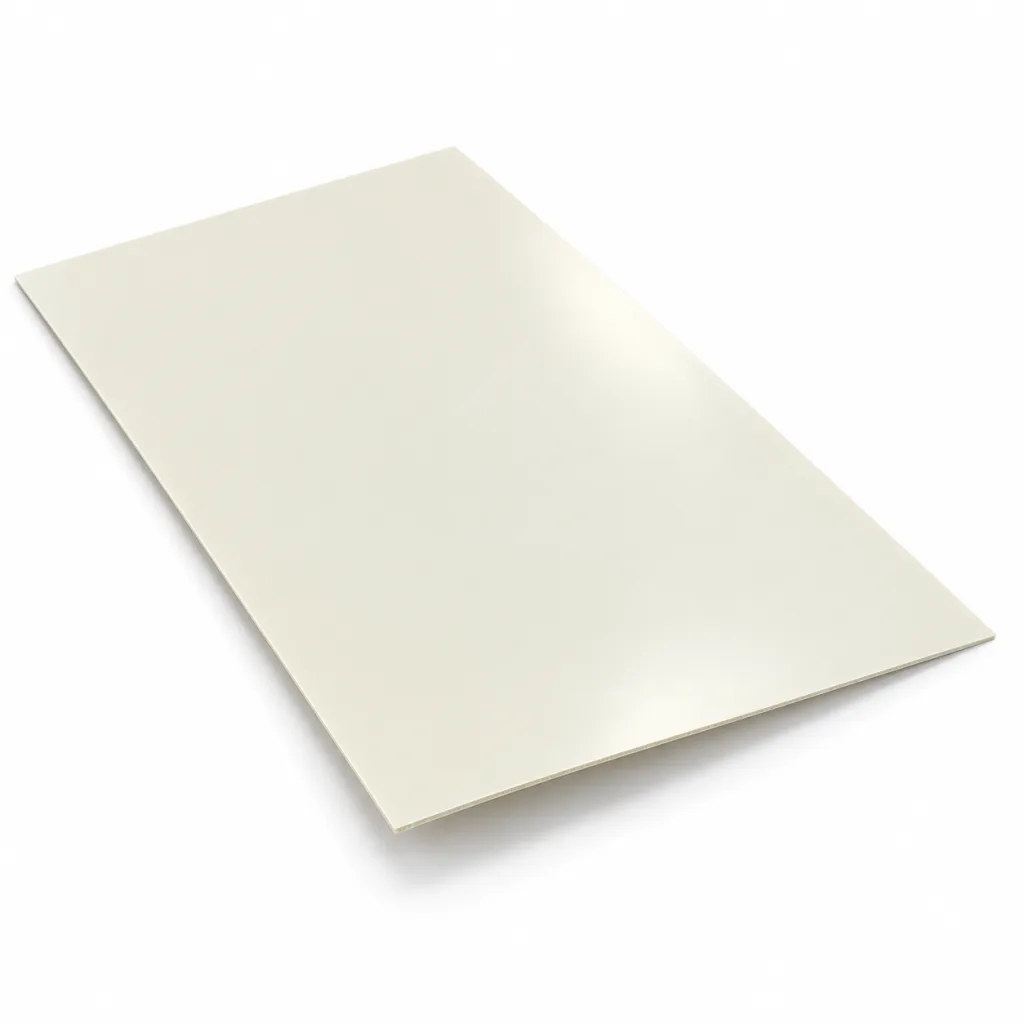

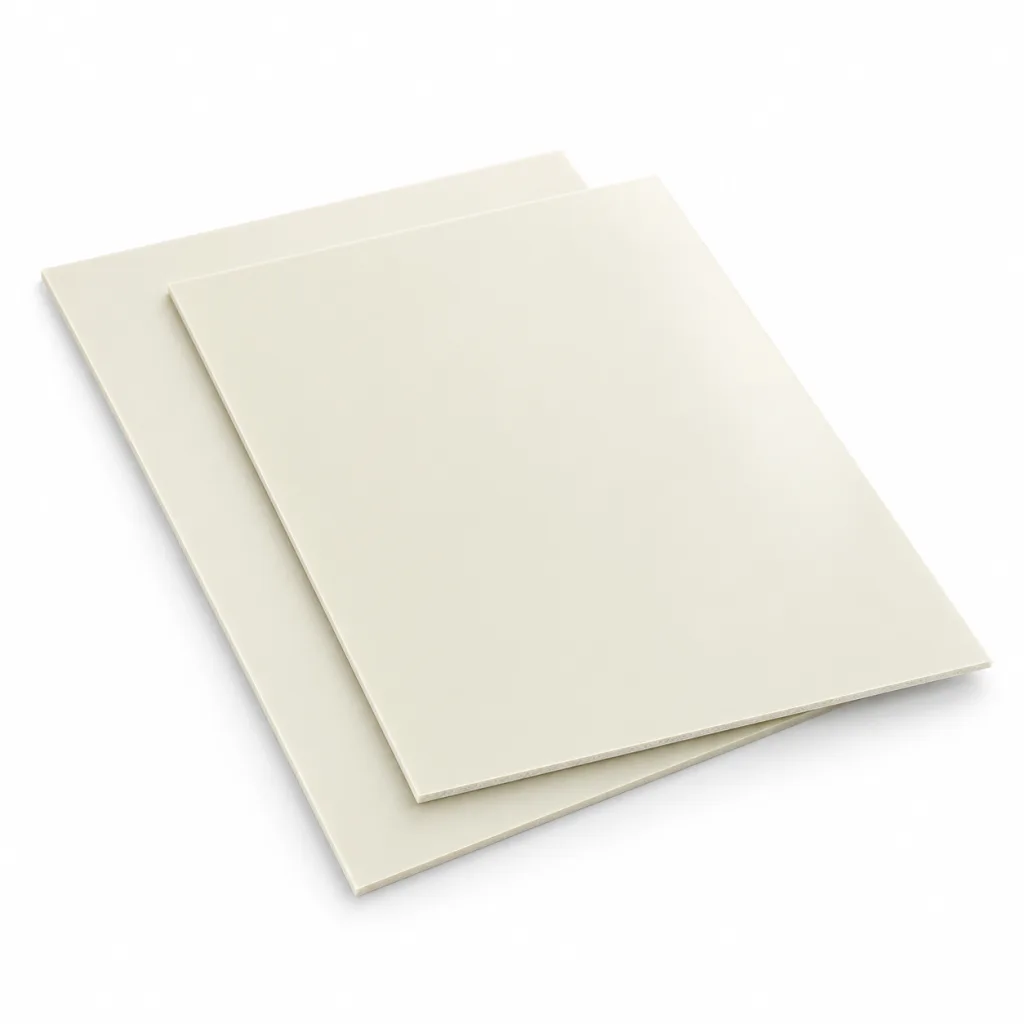

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
