YD-PP203 - Bakelite Sheets
Bakelite Sheets: Good insulation, wear and heat resistance, high mechanical strength, good processability, suitable for the electrical industry.
* If you are well-informed about the Bakelite Sheets and wish to make a bulk purchase of this product, please contact me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
Bakelite sheets, also known as phenolic laminate or phenolic paper laminate, are manufactured from high-quality bleached wood pulp paper and cotton linter paper as reinforcement materials, combined with high-purity, fully synthetic petrochemical-based phenolic resin as the resin adhesive. During the manufacturing process, Bakelite sheets are created by impregnating insulation paper with phenolic resin, followed by baking and hot pressing. They have a specific gravity of 1.45 and a warpage of ≤0.3%. At room temperature, they offer excellent electrical properties and machinability. These materials have a wide range of applications, including as insulating structural components in machinery, motors, and electrical devices, and can also be used for making PCB drilling, silicone rubber molds, jigs, and distribution boards, among others.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-PP203 - Bakelite sheets（Phenolic resin laminated paperboard） |
| Base Material | Phenolic resin+fiber reinforced material |

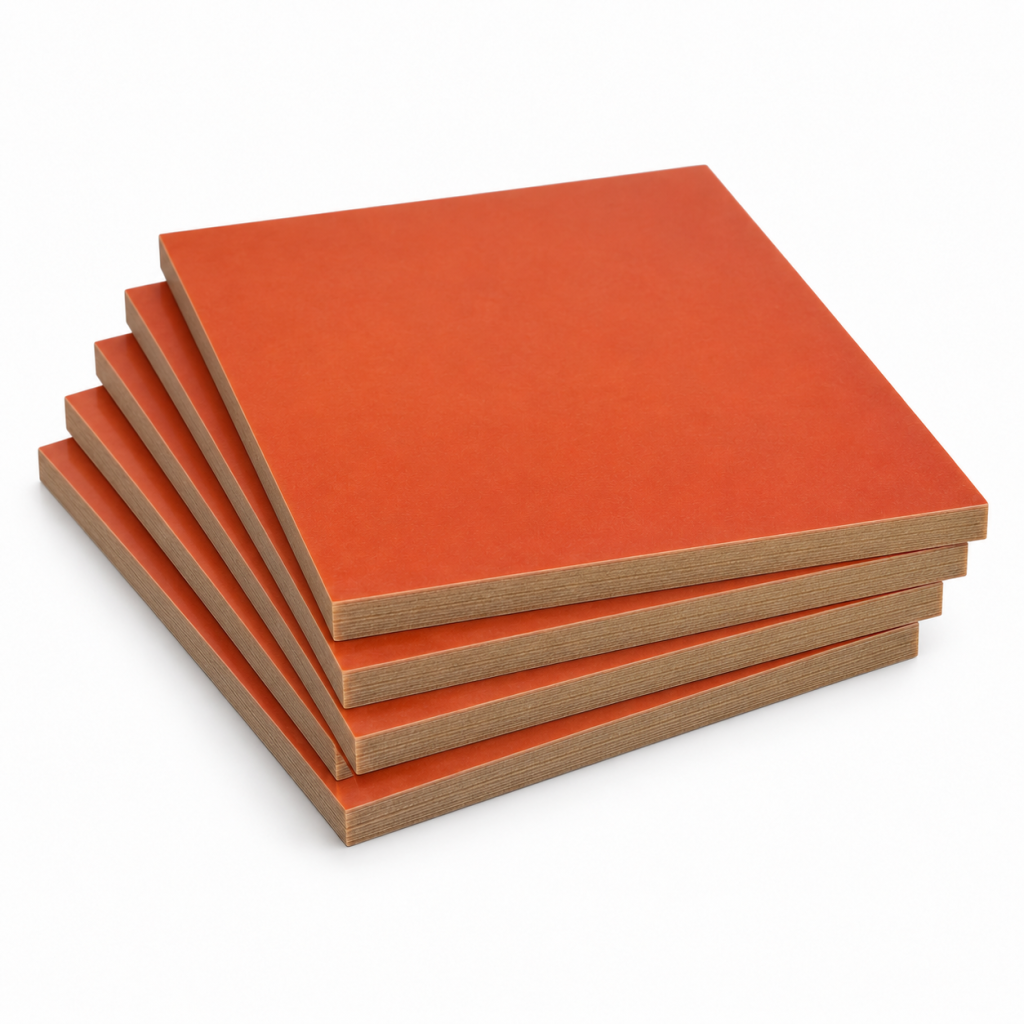

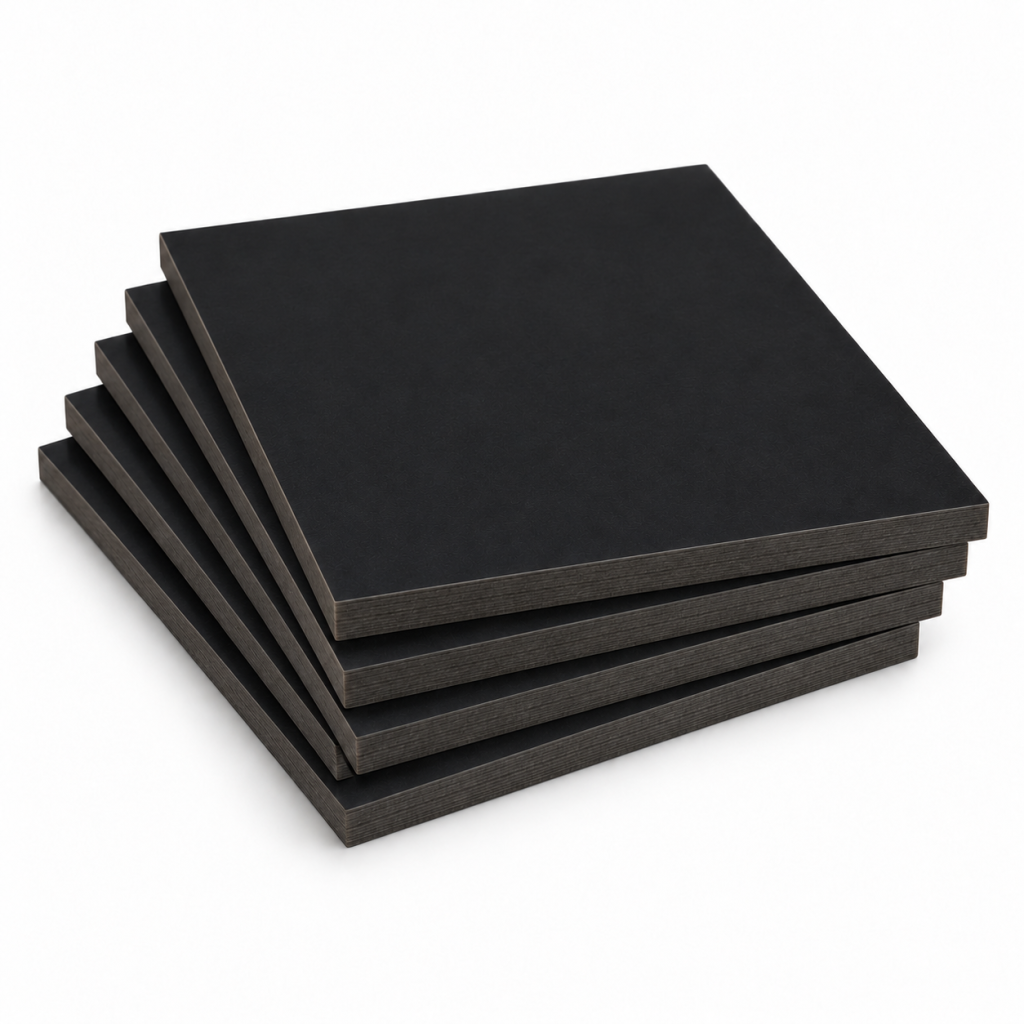

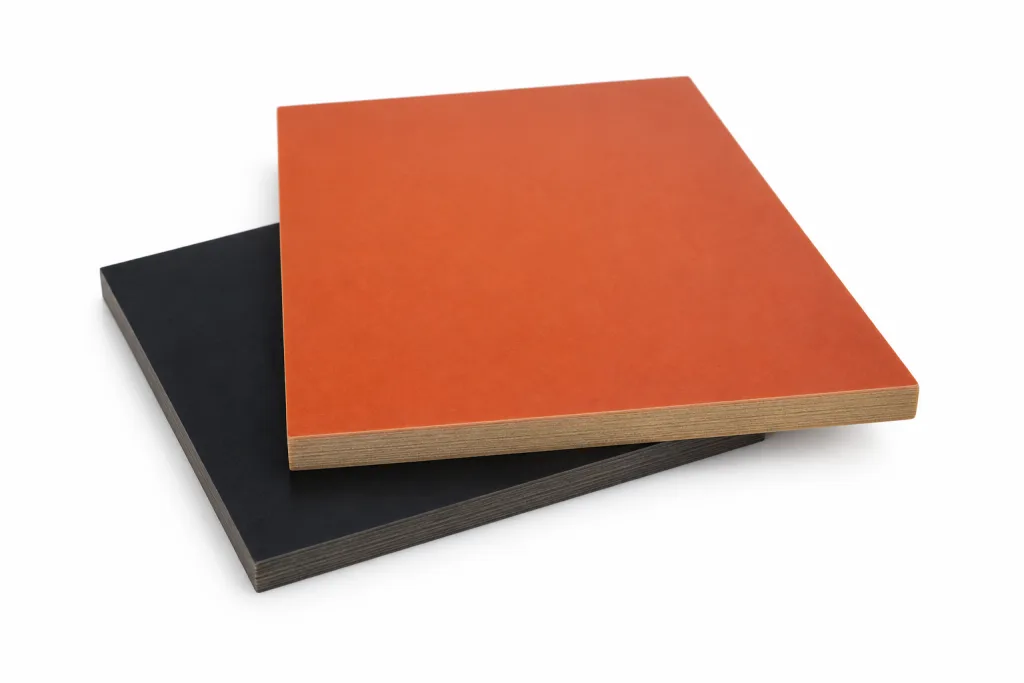

| Color | Black, orange red |
| Thickness | Generally between 0.15-100mm |
| Size | The regular size are 1020x1220mm, 1020x2020mm; Special sizes, we can produce and cut according to customer requirements. |
| Density | 1.45-1.5g/cm³ |
Product Features
- Reliable Electrical Insulation(Dielectric Strength: >= 10 kV/mm): Provides dependable electrical insulation for switches, control panels and industrial electrical components.
- High Mechanical Strength(250-350 MPa): Offers good rigidity, compressive strength and structural stability for mechanical support applications.
- Precision CNC Machining (Tolerance: Up to +/- 0.10 mm): Suitable for cutting, drilling, milling and turning into customized components.
- Good Heat Resistance(ClassE): Maintains stable performance under elevated operating temperatures and normal industrial conditions.
- Low Water Absorption (<=1.5%): Maintains good dimensional stability and electrical performance in humid environments.
- Stable Material Density (1.30-1.45 g/cm3): Combines reliable mechanical strength with relatively low component weight and good machinability.
- Multiple Color Options (Black, Orange and Brown): Available in standard industrial colors for different appearance and application requirements.

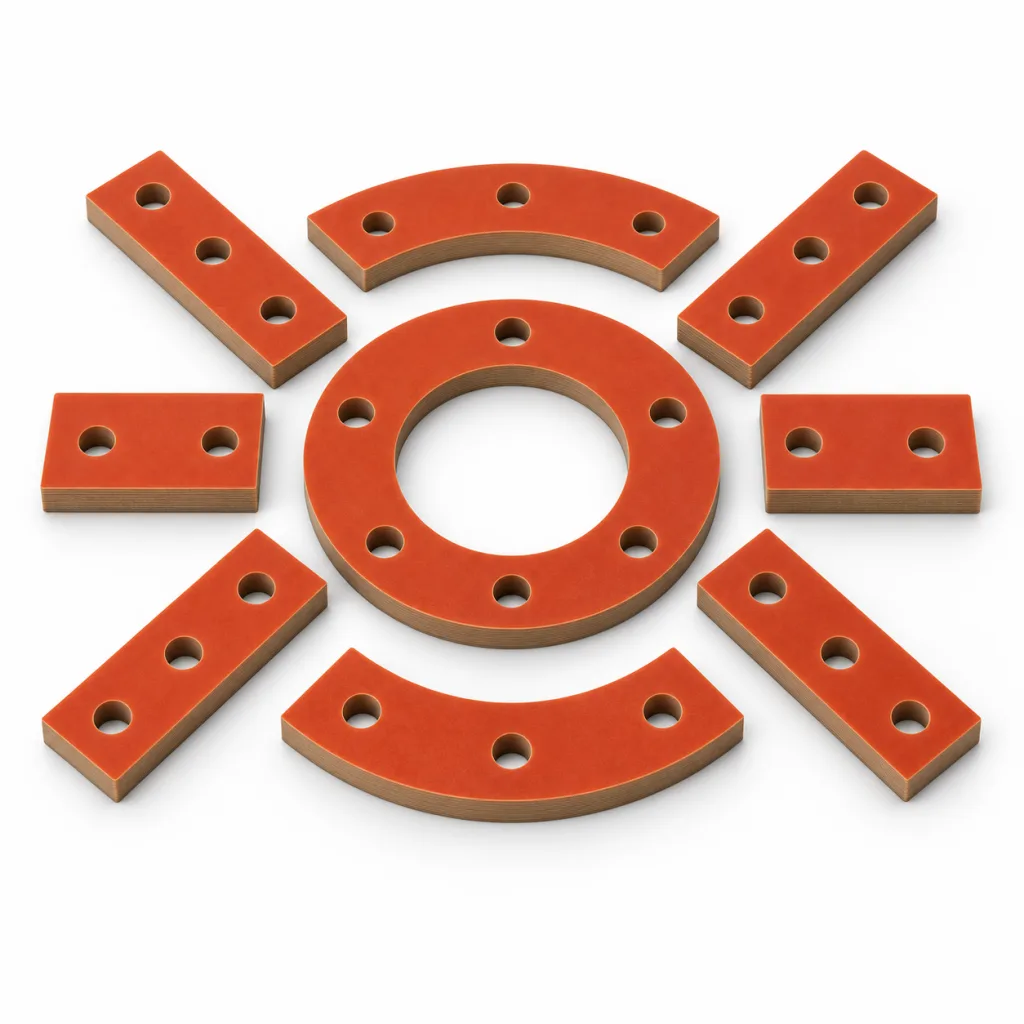

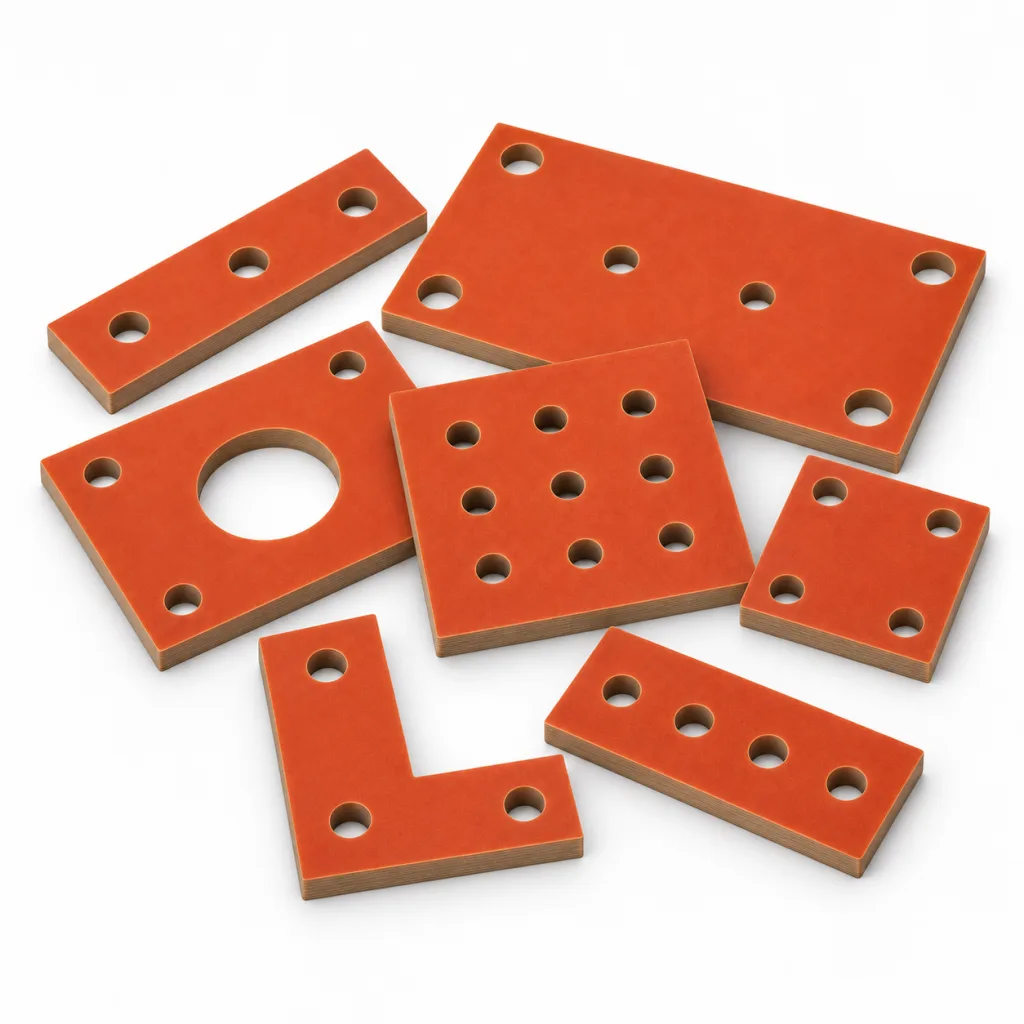

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
