YD-PC3526 Phenolic Laminated Cloth Tube
Phenolic Laminated Cloth Tube: high mechanical strength, excellent electrical insulation properties, strong heat resistance, dimensional stability, chemical corrosion resistance, suitable for electrical and mechanical fields.
*If you are well-informed about the Phenolic Laminated Cloth Tube bulk purchasese this please get in touch with me directly to quickly obtain prices, purchasing procedures, and delivery times.
If you have any special processing requirements for the product, please let me know, and we will do our best to serve you.
Product Introduction
Phenolic Laminated Cloth Tubes are made of white cotton cloth soaked in phenolic resin, dried, rolled under heat and pressure, and baked and solidified. The general specifications are a minimum wall thickness of 2mm, a length of 1000mm/tube, a density of 1.5g/cm3, and insulation The grade is B, with a temperature resistance of 130°C and a bending strength of 137Mpa. It is suitable for electrical and mechanical fields.
Product Dimension
| Specification Overview | |
|---|---|
| Name | YD-PC3526 Phenolic Laminated Cloth Tube |
| Base Material | Phenolic Resin + Cotton Cloth |
| Color | Dark brown or Black |
| Diameter | Ф10～Ф800mm |
| Length | 1000mm |
| Density | 1.45-1.5g/cm³ |
| Insulation level | E |
| Temperature | 120℃ |
Product Features
- High Compressive Strength (>= 150 MPa): Withstands mechanical pressure and provides stable support for bushings, sleeves and structural components.
- High Flexural Strength (>= 100 MPa): Provides reliable rigidity and resistance to bending during machining and long-term operation.
- Reliable Dielectric Strength (>= 8 kV/mm): Provides dependable electrical insulation for motors, transformers and low-voltage electrical equipment.
- Class E Heat Resistance (120°C): Suitable for continuous operation at temperatures up to 120°C under normal working conditions.
- Low Water Absorption (<= 1.5%): Helps maintain dimensional stability and electrical performance under normal humid conditions.

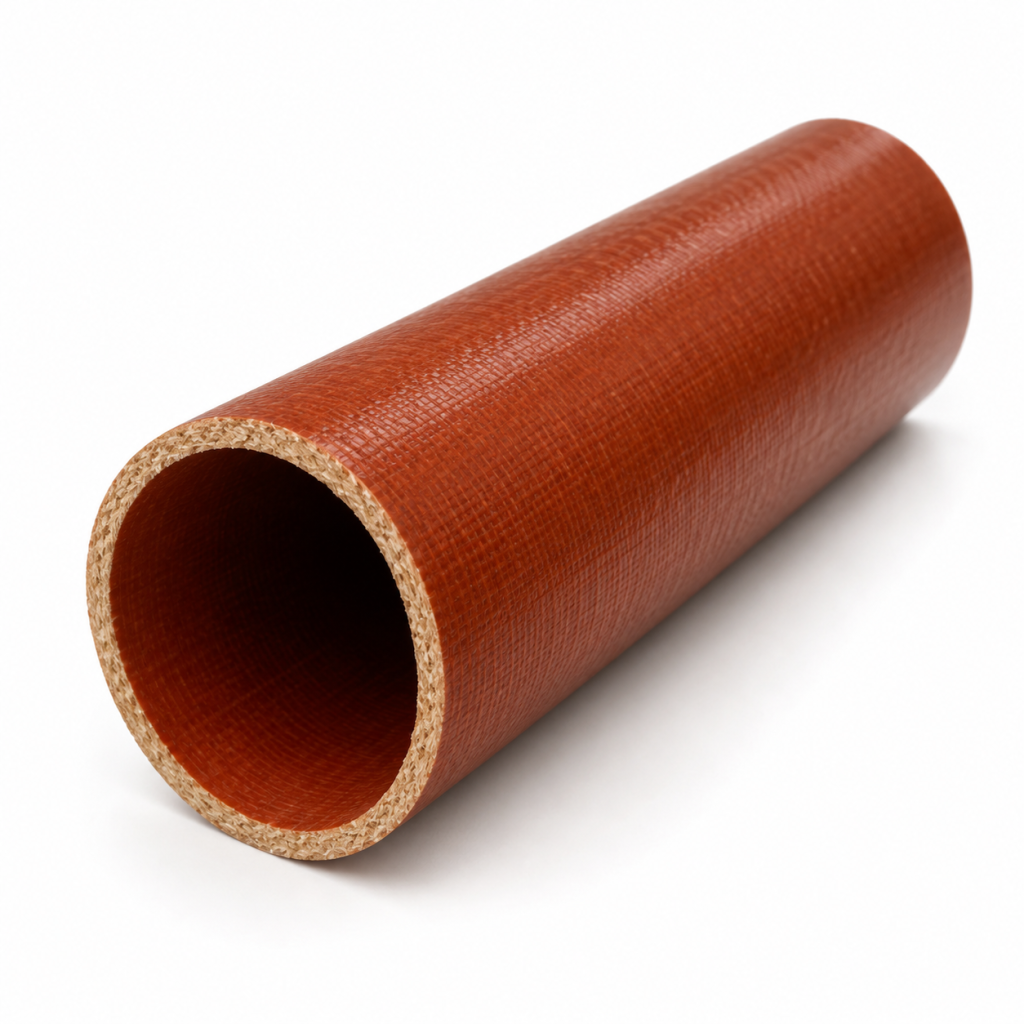

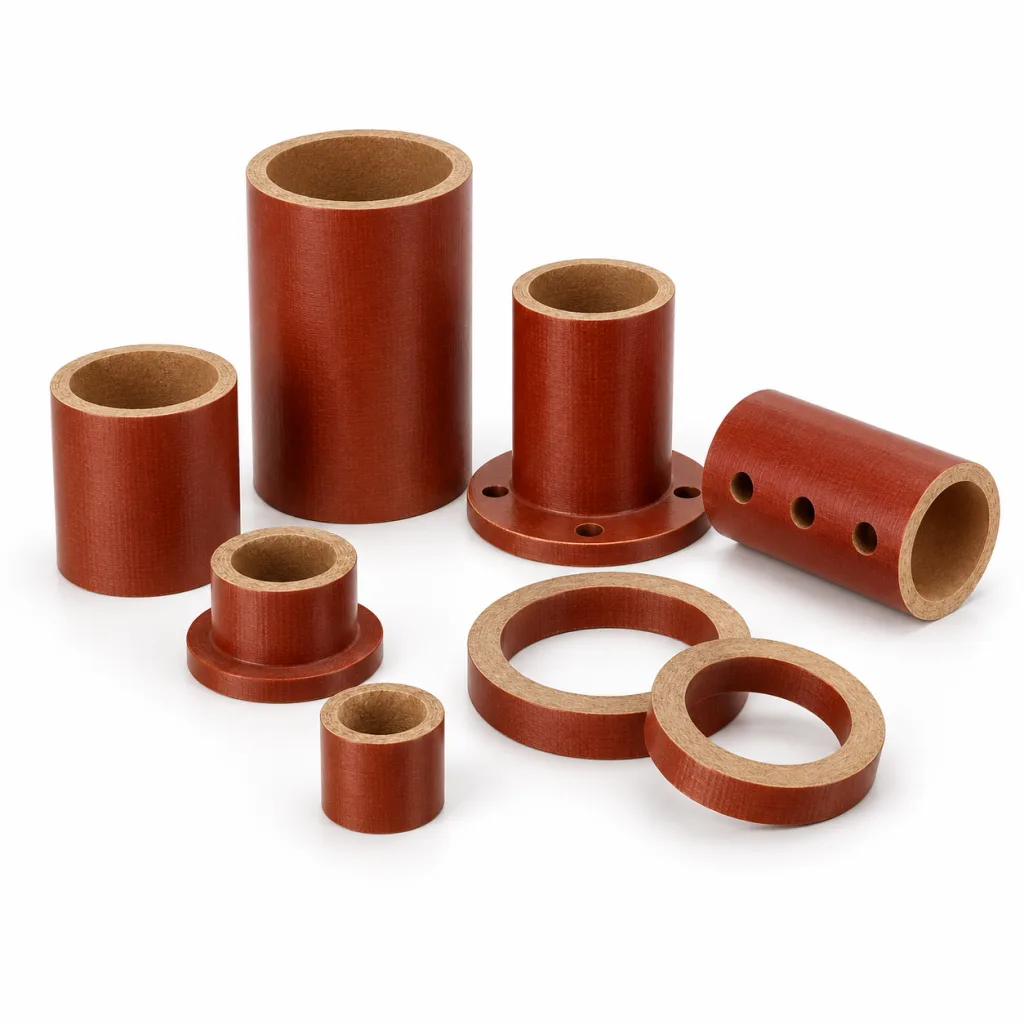

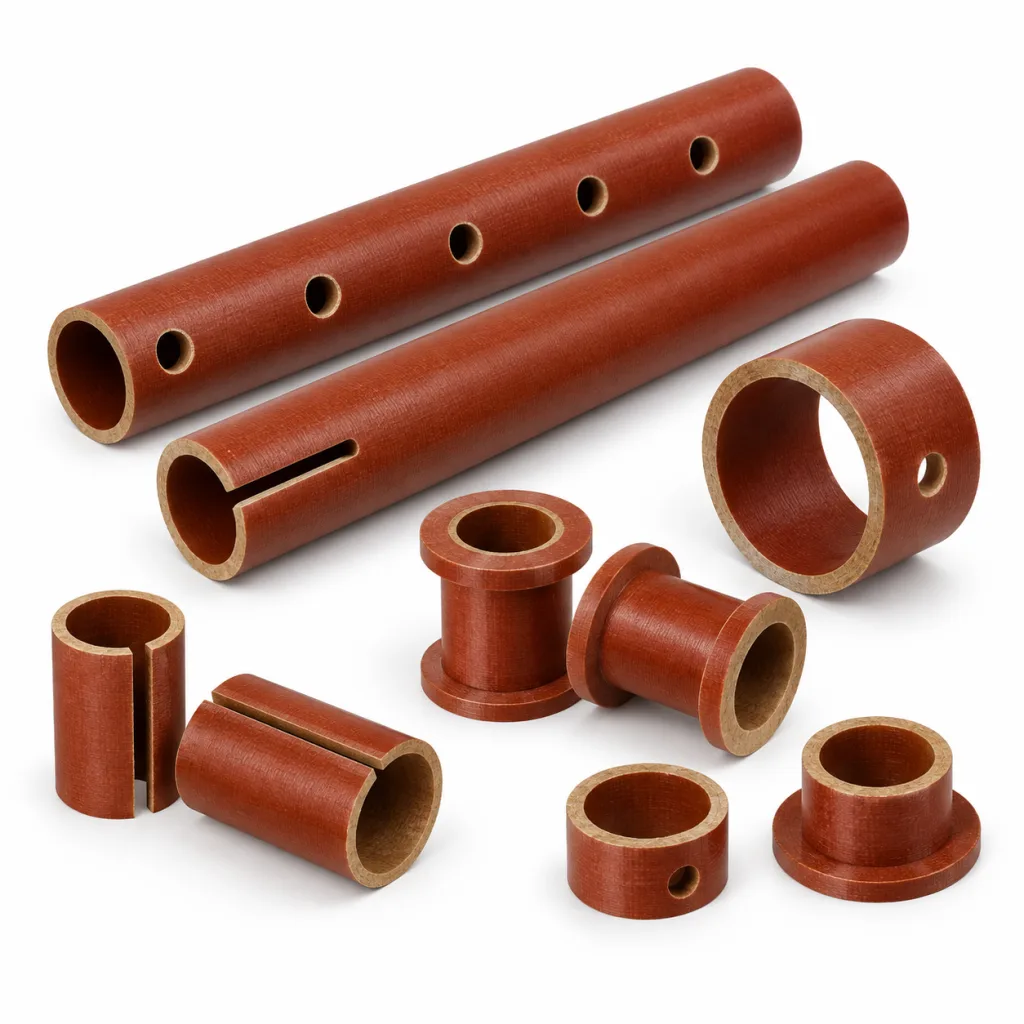

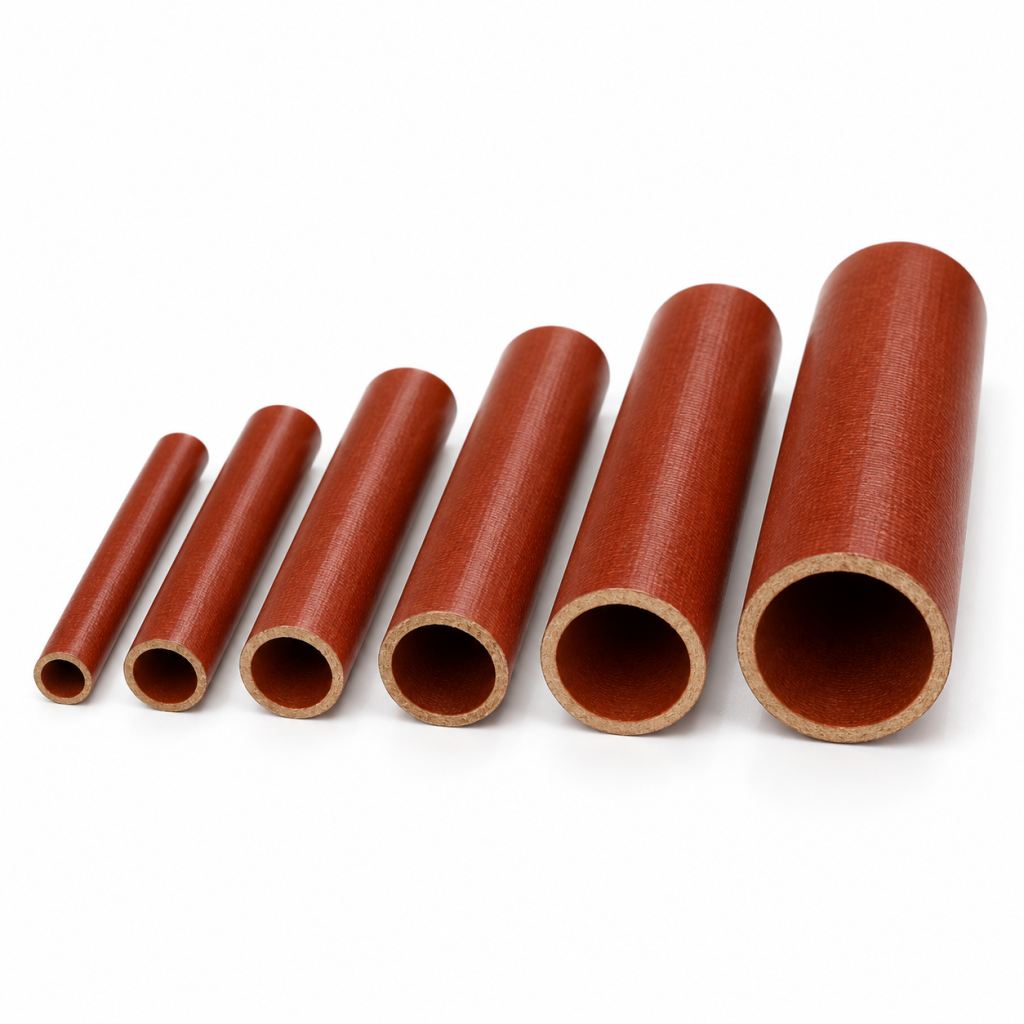

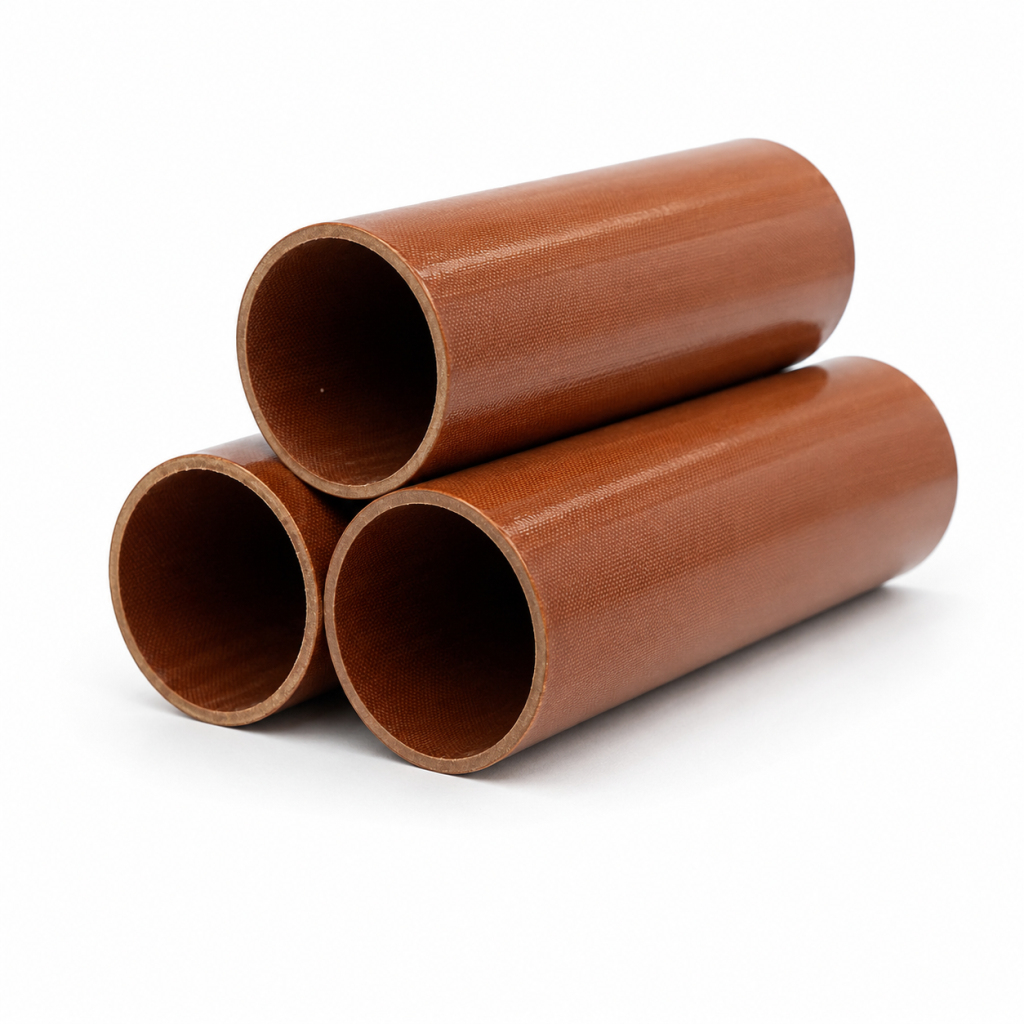

Product Display
Purchasing Steps
Delivery Time
- The general delivery cycle is: 15-20 working days.
If you have special requirements for the product, you can inform me through online chat, email, WhatsApp, or any other method, and we will contact you within the same day to address your concerns.
